GitHub Cache

Inspect cached GraphQL reads, exact point costs, API usage, latency, and rate limits.

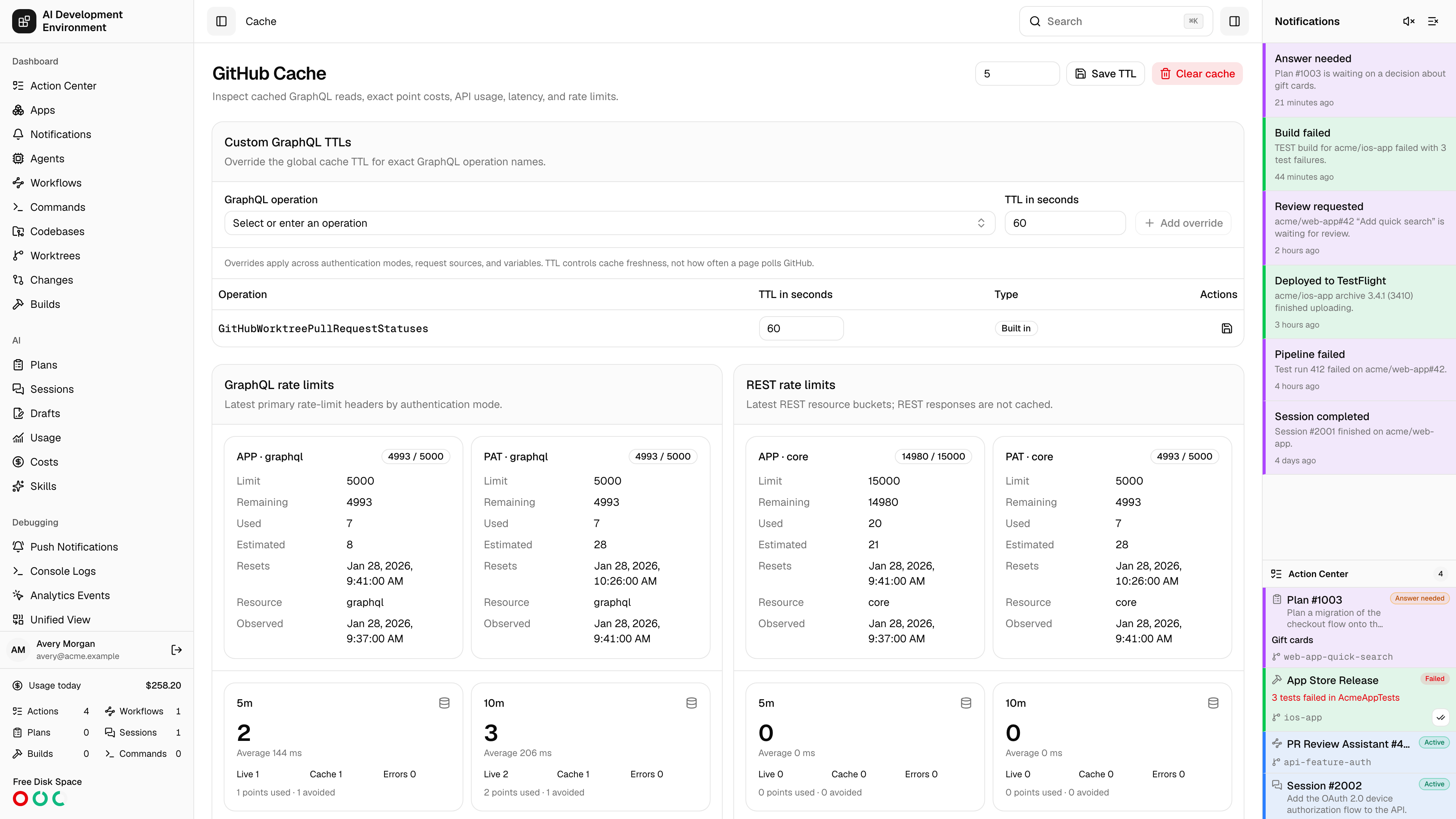

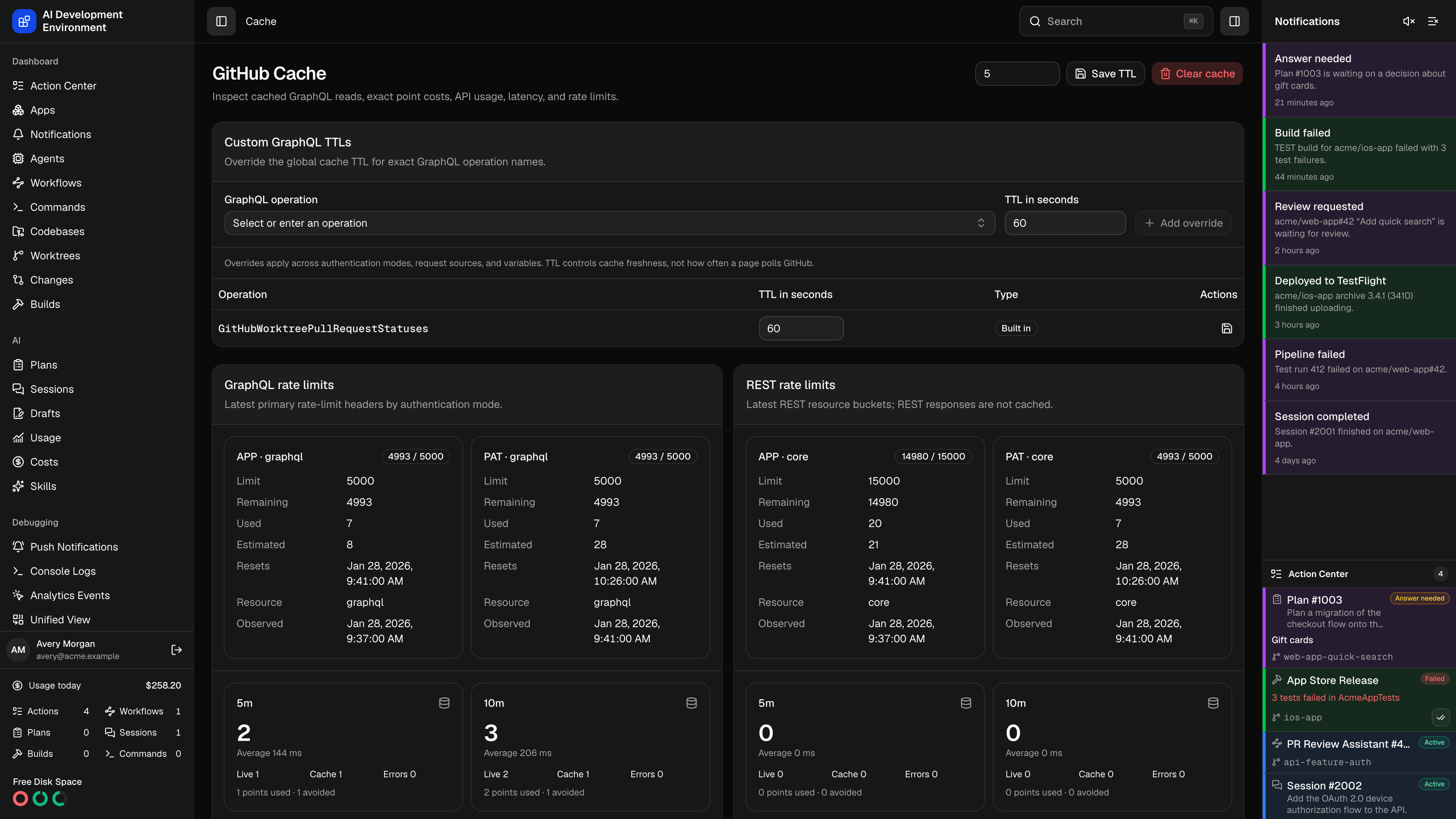

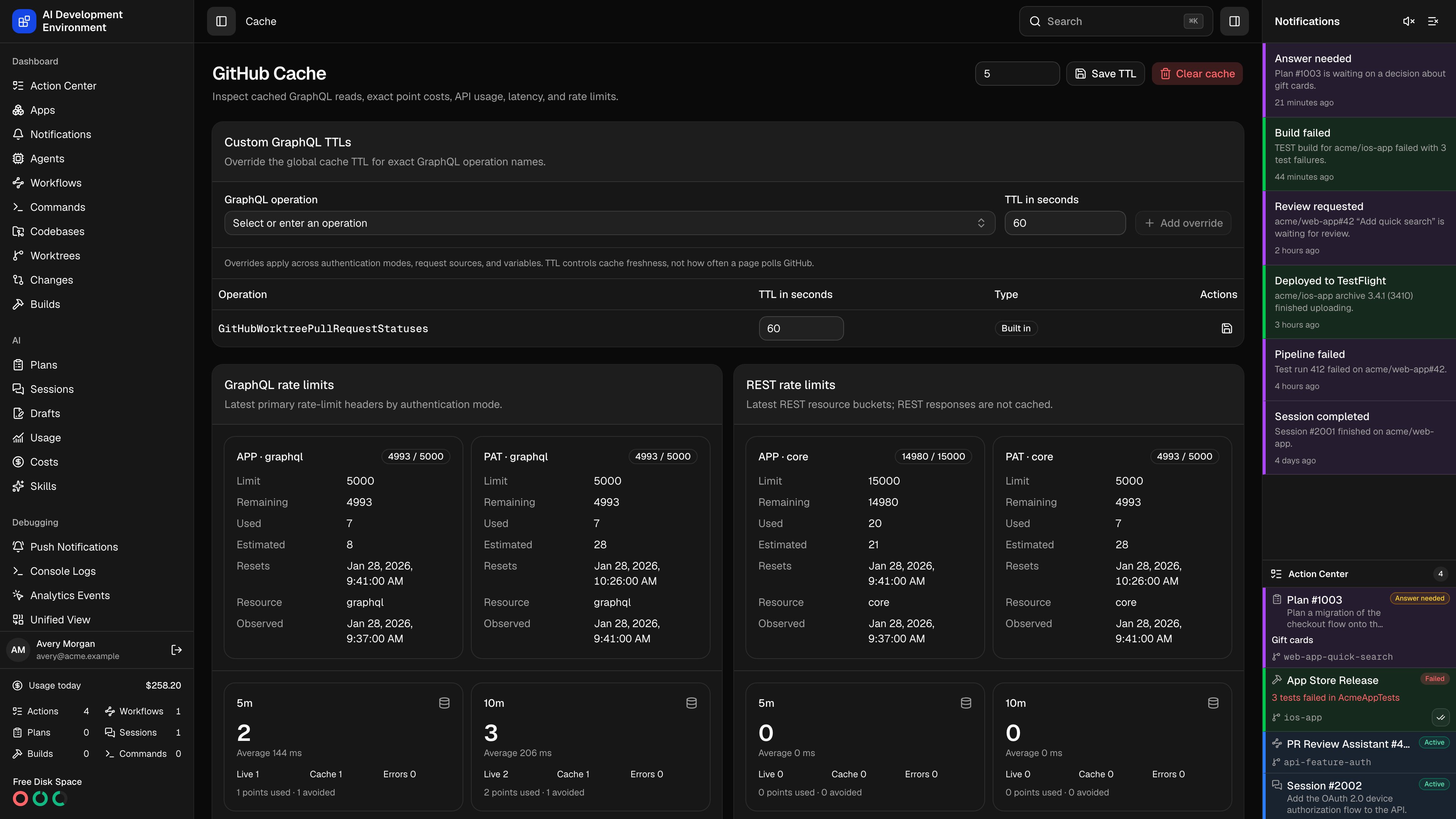

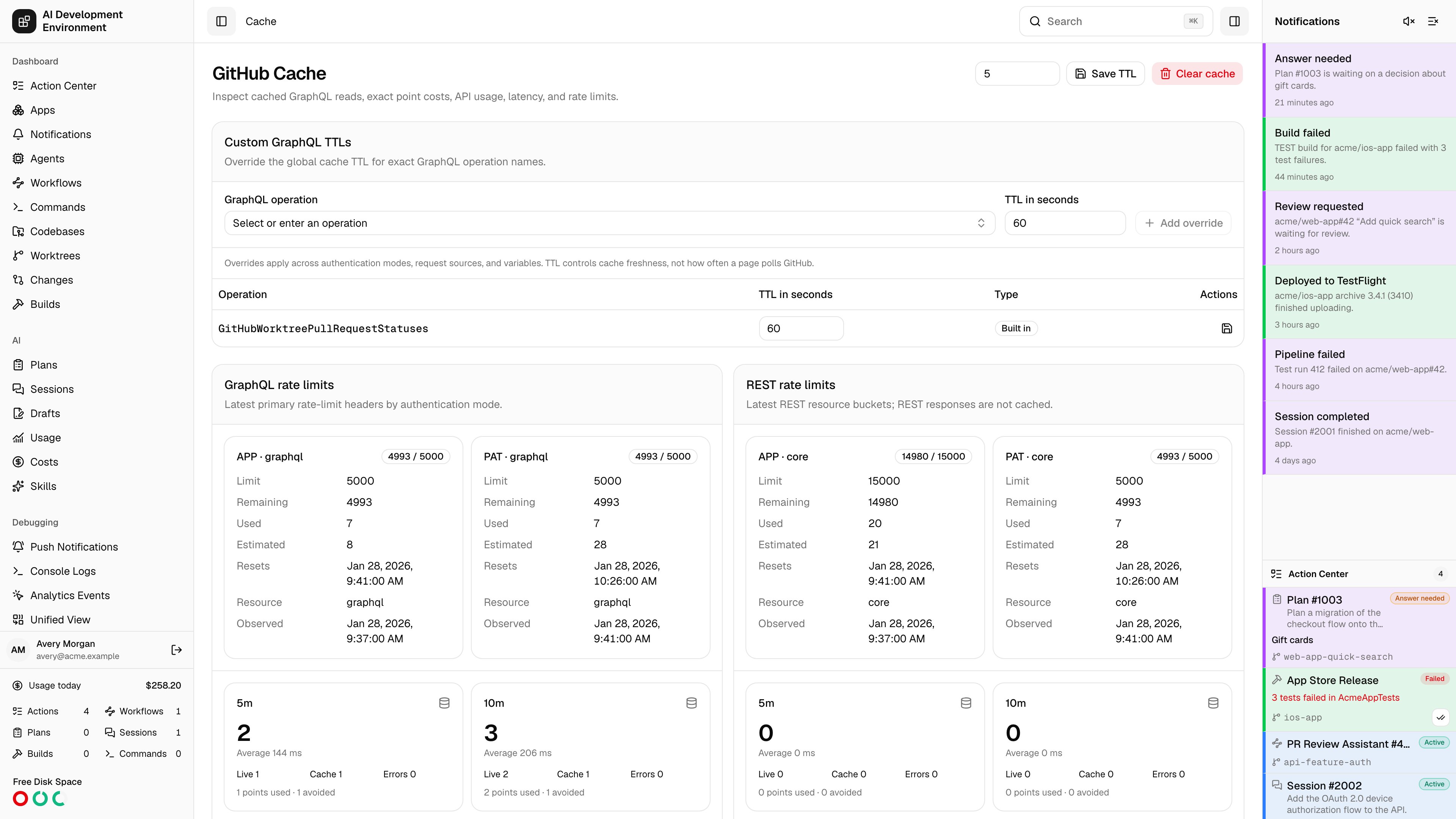

Every GitHub read in this product goes through one persistent cache. The GitHub Cache page at /github-cache is where that cache is tuned and audited: how long responses stay fresh, how many rate-limit points each operation actually costs, how many points the cache avoided, which feature made each call, and what is stored right now.

This is the page to open when GitHub starts returning rate-limit errors, when a page feels slow, or when you want to know why an operation is hitting the API more often than you expected.

Cache TTL

Cache TTL sets the global freshness window in minutes, from 1 to 1440. The default is 5 minutes. A cached response younger than the TTL is served without contacting GitHub; an older one triggers a live read on the next request.

Custom GraphQL TTLs override the global value for one exact GraphQL operation name, from 1 second to 24 hours. Pick an operation from the list of ones already cached, or type an exact name to add it before it appears.

Column	Meaning
GraphQL operation	The operation name the override applies to
TTL in seconds	Its freshness window
Type	Built in for overrides that ship with the product, Custom for yours

Deleting an override returns that operation to the global TTL.

TTL controls freshness, not polling. Shortening it does not make a page ask GitHub more often; it only means the next ask will not be answered from cache. Overrides apply across authentication modes, request sources, and variables.

Rate limits

GraphQL rate limits shows the most recent primary rate-limit headers for each authentication mode — the personal access token and the GitHub App are metered separately. REST rate limits shows the same for each REST resource bucket.

Field	Meaning
Limit	Points allowed in the current window
Remaining	Points left
Used	Points consumed so far
Estimated	Usage projected across the full hour at the current rate
Resets	When the window rolls over
Observed	When these headers were last seen

When GraphQL points are exhausted, reads fall back to the cached response and are recorded as errors that served stale data. If nothing is cached, the read fails outright until the window resets.

Usage metrics

GitHub API operations and Calls by source break activity down over four rolling windows — 5 minutes, 10 minutes, 1 hour, and 24 hours. Each cell reports totals, live versus cache splits, errors, average latency, and points used versus avoided.

The source is the feature that made the call — the pull requests page, pull request details, the comments page, the Actions page, worktrees, worktree pipelines, worktree automation, Actions auto-retry, workflow automation, Actions notifications, codebase repository reads, GitHub settings, and this page. When one feature dominates your point usage, this is where it shows up.

Recent calls

Recent GitHub API calls lists individual calls — PAT and App, GraphQL and REST, cached, live, stale, and failed — grouped by day.

Column	Shows
Time	When the call was made
Operation	GraphQL operation name, or METHOD /path for REST
Call information	A summary of the variables sent
Source	The requesting feature
Status	Live, Cache, or Error, with point cost, points avoided, rate bucket, and duration
Error	The failure message, when there is one

Filter by API type, by request source, and by live versus cache. Clear recent calls empties the log while keeping cached responses and rate-limit snapshots.

Cached entries

Cached GraphQL entries lists what is stored, paginated, with the operation, authentication mode, freshness, last fetched time, and the exact point cost of the last live fetch.

Action	Effect
Open	Opens the entry with its query, variables, and response
Force refresh	Re-reads that entry from GitHub now
Delete	Removes just that entry
Clear cache	Removes every cached response; API history and rate snapshots are kept

Notes

• Entries are keyed by authentication mode, operation, normalized query, and canonicalized variables — the same query with different variables is a separate entry.
• Variable values whose names look like credentials — authorization, password, private key, secret, token — are redacted before anything is stored or logged.
• REST responses are never cached. Each REST call is counted as one point.
• A successful GraphQL mutation clears the whole cache, so a merge, a reply, or a resolve is immediately reflected in later reads.
• Changing GitHub credentials clears the cache and that mode’s rate-limit snapshots.
• Call history older than 30 days is pruned automatically.
