GitHub Webhooks

Review webhook deliveries received from GitHub and how each event was handled.

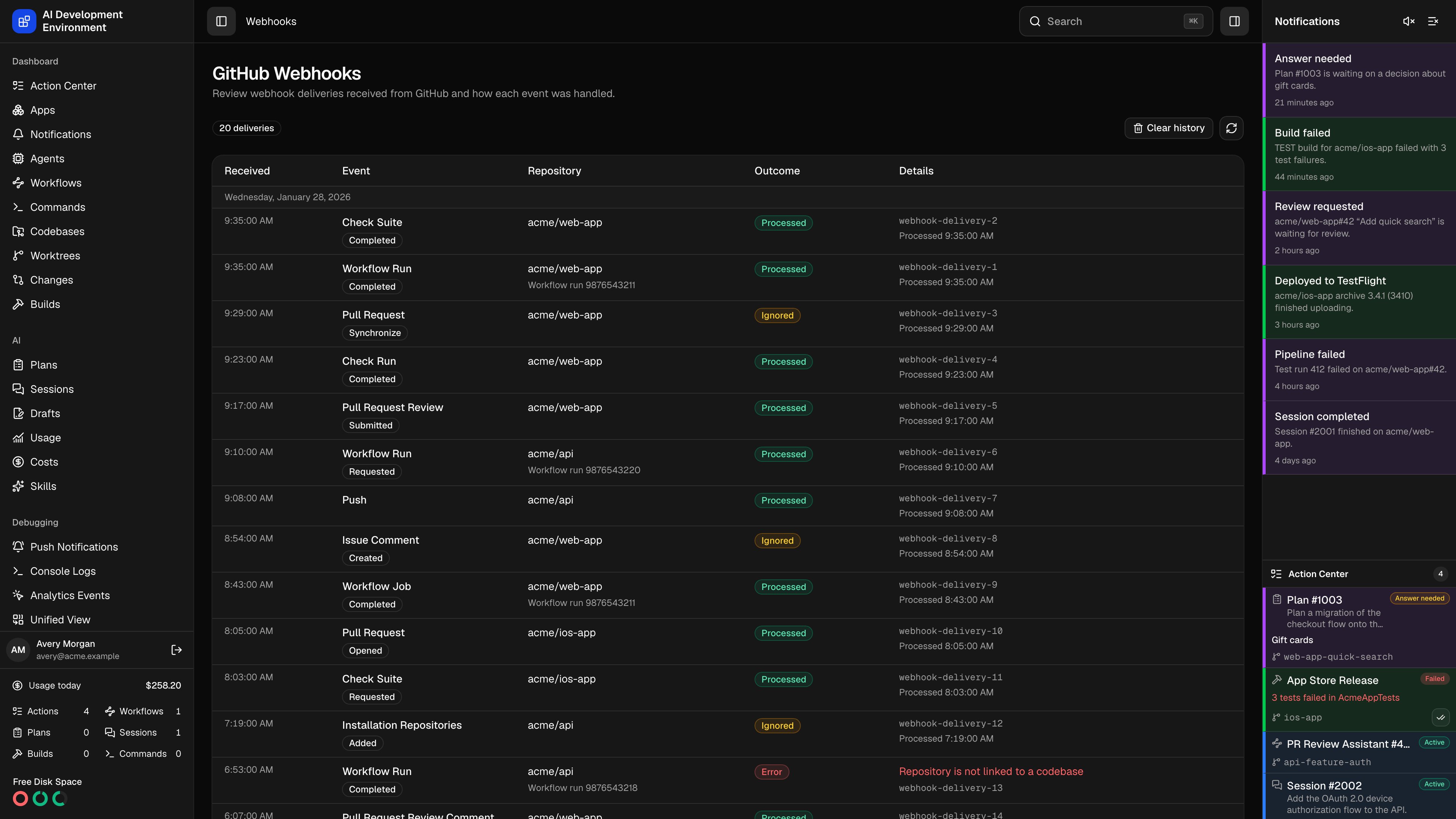

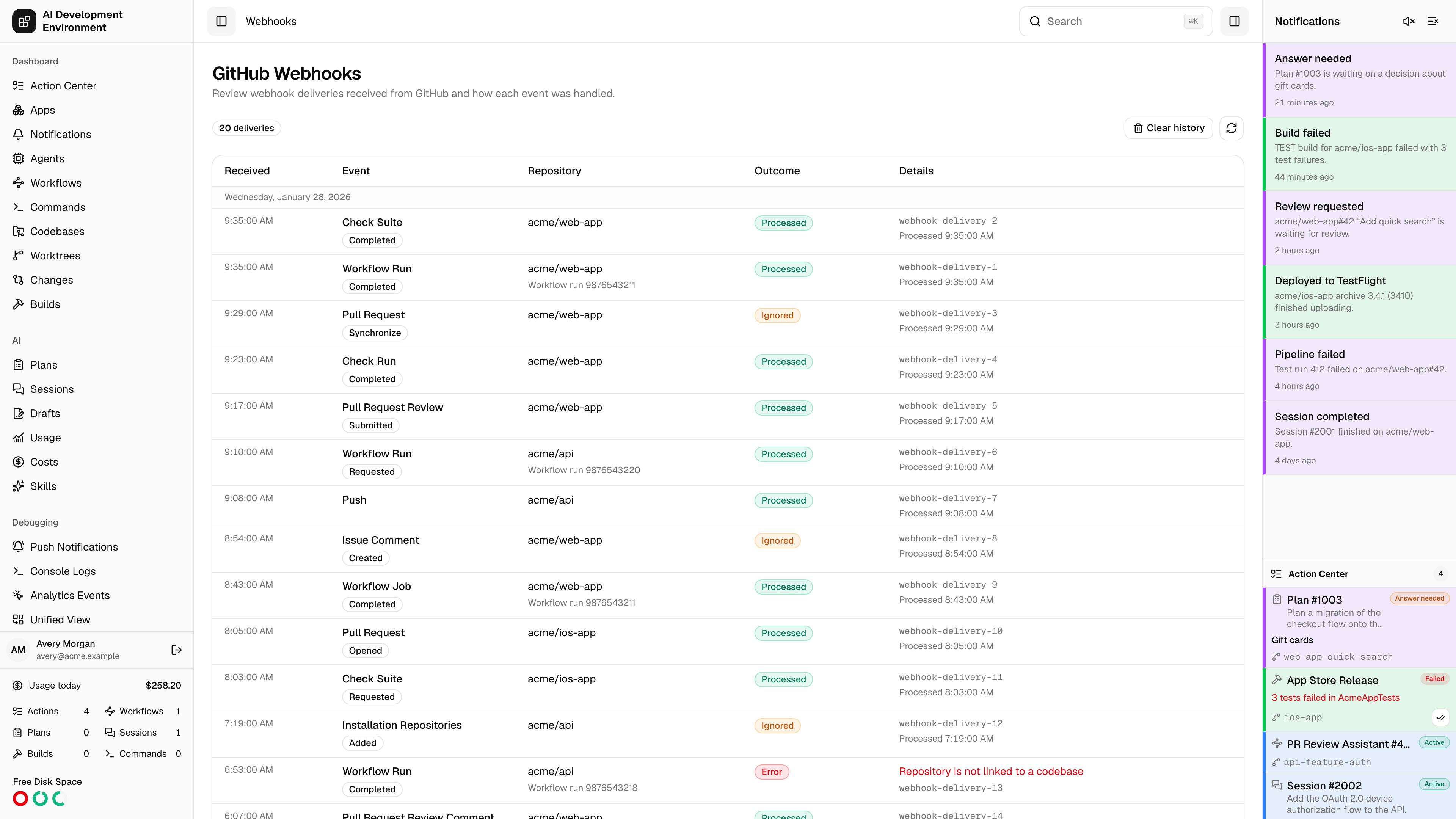

The GitHub Webhooks page at /webhooks reviews the deliveries GitHub sent to this deployment and what each one did.

The webhook is optional but changes how the product behaves. Without it, GitHub state is only as fresh as the last poll or page load. With it, workflow results arrive as they finish, pipeline badges update live, and GitHub events can start workflows on their own.

Using the page

Deliveries are listed newest first, grouped by day, 50 per page.

Column	What it shows
Received	When the delivery arrived
Event	The X-GitHub-Event value, with the payload’s action as a badge
Repository	owner/name, plus the workflow run ID for workflow_run deliveries
Outcome	Received, Processed, Ignored, or Error
Details	The error if there was one, the GitHub delivery ID, and when processing finished

Clear history empties the list; new deliveries keep arriving afterwards.

Outcomes

Outcome	Meaning
Received	Recorded, still being processed
Processed	The delivery updated something — a workflow run, a pipeline snapshot, or a workflow trigger
Ignored	Valid and verified, but nothing here needed it
Error	Processing failed; the reason is in Details

A delivery is ignored when its installation.id does not match the configured GitHub App, when the repository is not registered here, or when the event is one nothing subscribes to. None of these are failures — they are the normal result of an App that is installed more widely than this deployment’s codebases.

Setting up the webhook

The GitHub App pipeline retries card in Settings configures the App that signs these deliveries. The same App also enables workflow and job retries.

1. Register a GitHub App

   Create a uniquely named App from New GitHub App. Use this deployment’s address as the Homepage URL and leave the callback URL empty.

2. Grant permissions

   Set Repository permissions → Actions to Read and write. For live pipeline updates, also grant Checks and Commit statuses read access.

3. Enable webhooks

   Enable webhooks, subscribe to Workflow run, and use the webhook URL shown on the card. Saving generates the signing secret and configures the URL through GitHub for you.

4. Install and collect credentials

   Create the App, generate a private key, and install it on only the repositories this deployment should control. The installation ID is the final number in the App’s Configure page URL.

5. Save and verify

   Paste the App ID, the installation ID, and the downloaded PEM, then Save and verify. The card then reports the connected App and account, the Actions permission, the repository selection, and the time and outcome of the most recent delivery.

The private key is sent only to the server and is never returned to the browser. Rotating it means pasting a replacement PEM and verifying again; leaving the field blank keeps the stored key.

The webhook is unavailable until this deployment has a public HTTPS origin. Personal-token polling keeps working in the meantime. If GitHub reports that webhooks are not enabled on the App, enable them there, select Workflow run, and save again. Behind a proxy or tunnel, override the Webhook URL with the address GitHub can actually reach.

Enhanced pipeline webhooks

Enhanced pipeline webhooks subscribes to more than completed runs, so check, job, and commit-status changes stream in as GitHub reports them.

Event	Actions observed
workflow_run	requested, in progress, completed
workflow_job	queued, in progress, completed
check_run	created, rerequested, completed
check_suite	requested, rerequested, in progress, completed
status	every commit status update

These deliveries drive the live pipeline badges, job lists, and step statuses on Pull Requests, pull request details, and the worktree pages. Enable the matching permissions and events in GitHub, approve the installation change, then save and verify here.

Workflow triggers

Deliveries also start workflows. When a verified delivery matches one of these, the corresponding trigger fires with the pull request, branch, ticket key, and worktree already resolved:

Event and action	Fires
pull_request opened, reopened, ready for review	Pull request state
pull_request synchronize	Pull request synchronized
pull_request closed	Pull request closed
pull_request labeled	Pull request label
pull_request_review submitted, approved	Review approved
pull_request_review submitted, changes requested	Review changes requested
pull_request_review_comment created	Review comment
check_run or check_suite with a failing conclusion	Check failed
push to the repository’s default branch	Push to default branch
issue_comment created	Issue comment command

The branch on the delivery is matched against the repository’s Jira branch regex and against the worktrees registered here, so a triggered workflow starts with its ticket and worktree context rather than just a payload.

Notes

• This page appears only when a GitHub App webhook is configured. Removing the App hides it.
• Deliveries arrive at /api/public/github/webhook and are rejected unless signed with the stored secret: a missing or invalid X-Hub-Signature-256 is answered 401, an unconfigured webhook 503, and a payload over 1 MB 413.
• GitHub identifies each delivery with X-GitHub-Delivery, which stays the same across retries. Retrying a delivery that already finished does no work; retrying one that failed processes it again.
• A verified workflow_run completion switches Actions notifications from polling to webhook mode — see Polling.
• Deliveries older than 30 days are pruned automatically, along with the workflow run observations recorded alongside them.
