Workflow editor

Drag steps onto the canvas, connect typed handles, then validate and publish.

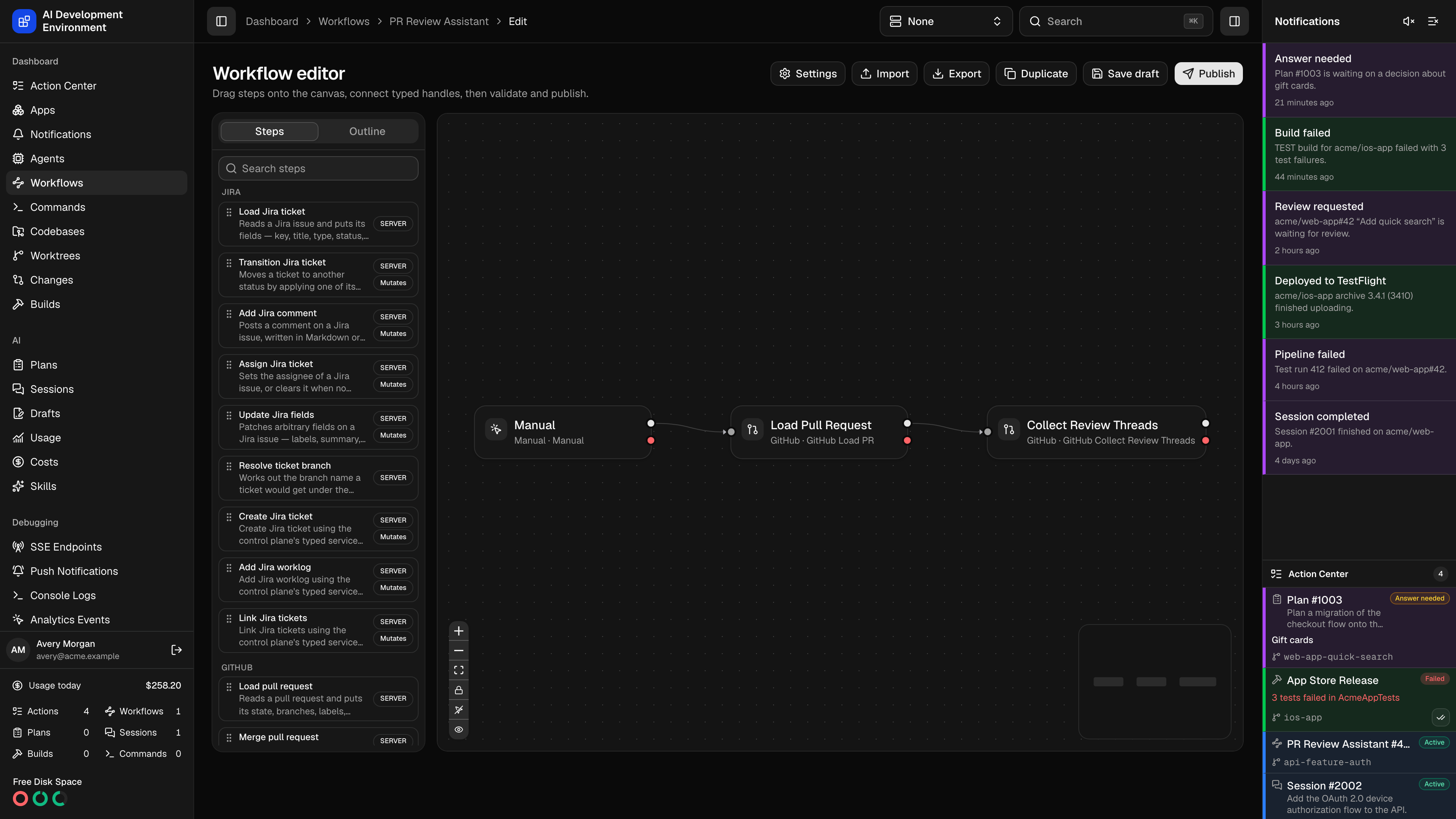

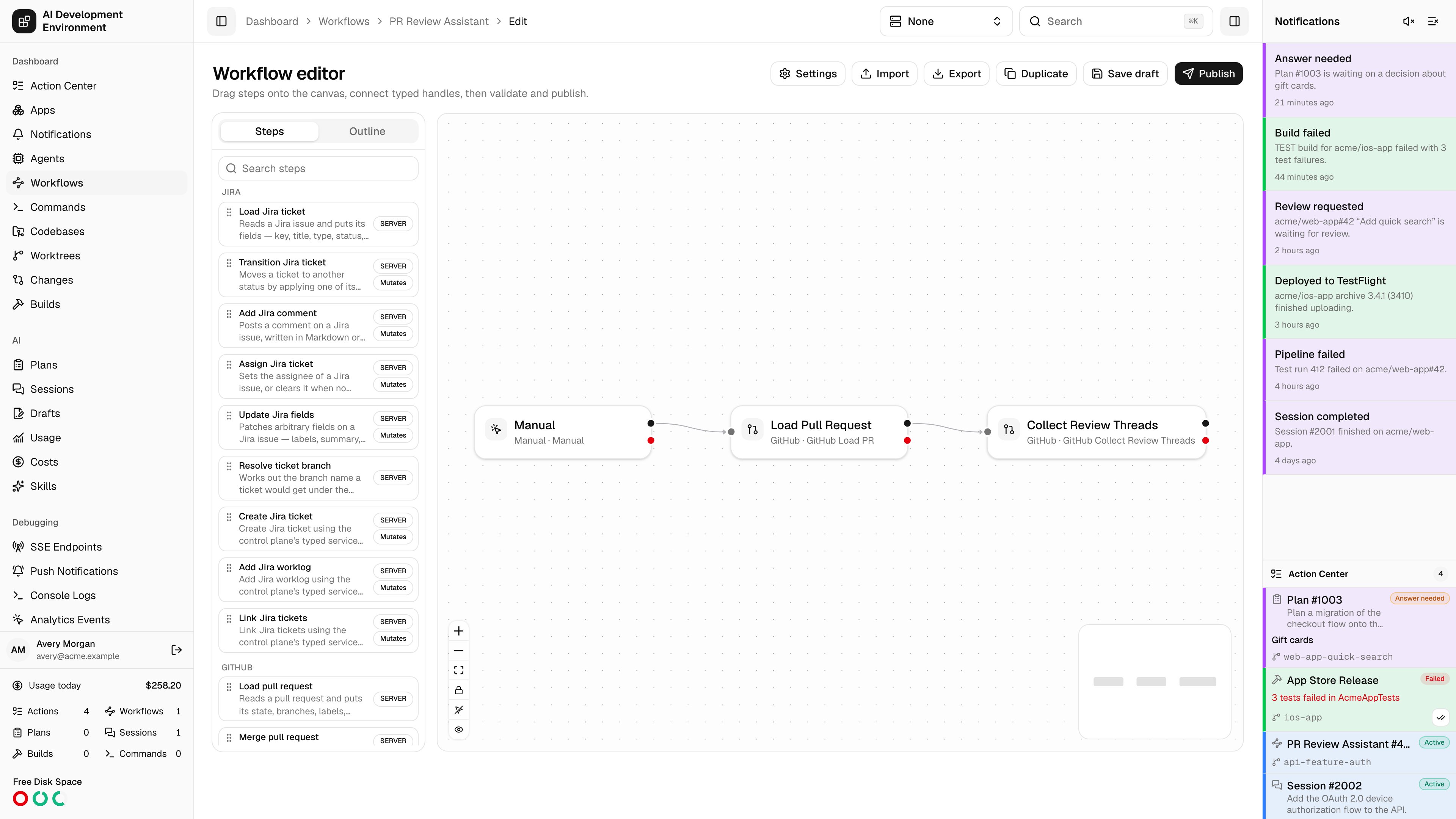

The workflow editor at /workflows/{id}/edit is a visual canvas for building durable automations. You place one trigger and a set of typed steps, connect their handles, configure each one, validate the graph, and publish an immutable version.

Anatomy of a workflow

Trigger

Exactly one, and it starts the run. Triggers cover manual starts, schedules, GitHub, GitLab, and Jira events, build results, worktree state changes, AI run lifecycle events, agent and disk thresholds, and more.

Steps

The work. Typed kinds span Jira, GitHub, GitLab, worktrees, codebases, builds, AI runs, skills, commands, notifications, signing, devices, control flow, and MCP calls.

Connections

Typed handles between nodes. Most steps expose success and failure; control-flow steps name their own branches.

Session data

A JSON document threaded through the run. Steps read values from it by path and write their results back into it.

Handles

The outgoing handles a node offers depend on its kind:

Kind	Handles
Most steps and triggers	success, failure
If	true, false
For each	body, empty
Try	success, catch
Saved command and Custom command	success, failure, and match when an output pattern is configured
Choice triggers	One handle per choice you define

An edge leaving a handle the node does not offer never becomes active, so the validator flags it rather than letting the run silently stall.

The canvas

The left panel toggles between the palette and the outline. The palette groups steps and triggers by category — Agents, AI runs, Builds, Codebases, Control flow, Extensibility, GitHub, GitHub Actions, GitLab, Human loop, Jira, Manual, Plans and sessions, Schedule, Skills, Workflows, and Worktrees — and searches across label, kind, category, and description. Drag an entry onto the canvas to add it.

Canvas controls:

Control	Effect
Lock to fit / Unlock view	Keeps the whole graph in frame as you edit, or frees panning and zoom
Show session data / Hide session data	Overlays what each step reads from and writes to session data
Lock steps in place / Unlock steps	Prevents accidental node dragging while you work on configuration
Preview basic layout	Shows how the graph will render in read-only views under the Basic viewer layout

Right-clicking a node offers Duplicate step and Delete node; connections offer Delete connection.

Configuring a step

Selecting a node opens its inspector.

Configuration

Each step kind has a typed configuration schema rendered as a form. Fields without a form control are editable under Advanced (raw JSON), and the whole configuration can be pasted in at once with Configuration (JSON) → Apply configuration.

Every value field can be switched between two sources with Switch value source:

• Use a fixed value — a literal you type now.
• Bind to session data — a session path such as ticket.key, read when the run executes.

Text fields also accept {token} interpolation to splice session data into a string at execution time.

Session data contract

The inspector states what the step needs and what it produces:

• Additional required paths — session paths this step needs before it can run.
• Additional provided paths — paths it guarantees to write.
• Adds to session data / Seeds session data — the concrete keys it contributes.

The validator uses these to prove that every step’s inputs are satisfied by something upstream.

Retries and failure

• Maximum attempts — how many times the step may run.
• Retry strategy — Fixed delay or Exponential backoff.
• Retry delay — the base delay in seconds.
• Failure policy — Fail workflow stops the run; Continue routes out of the failure handle and keeps going.

Conditions

An If step builds its condition from comparisons, matched with All of these are true or Any of these is true. Each comparison takes a session value, an operator, and a compared value.

Operators: equals, does not equal, contains, does not contain, matches regex, does not match regex, is greater than, is at least, is less than, is at most, is set, is not set.

Numbers and true/false are compared as typed values; quote a value to compare it as text. The true handle runs when the condition matches, false otherwise. Conditions with nested groups the builder cannot draw fall back to JSON editing.

Human choices

A Human choice step defines the buttons shown while the run waits for an answer, each with a Button label and an optional Description.

A choice trigger works the same way but at the entry point: each choice gets an Output key, becomes a menu item under the run button, and routes the run out of its own handle — so one workflow can offer several entry paths without a step in front of them. Output keys must be unique.

Model settings

Steps that invoke a model expose Provider, Model, and Effort.

Reacting to command output

Saved command and Custom command steps can route work as soon as their output matches a case-sensitive RE2 regular expression. Set Output match pattern (RE2), keep Completion on Wait for exit, then connect the match handle to an independent branch.

Match behavior	Effect
Once	Emits the first match, then ignores later matches
Each match	Starts one isolated branch for every match while the command continues running

The match branch receives the current result at steps.<stepId>.latestMatch; steps.<stepId>.matches keeps the ordered results emitted so far. Each result includes text, positional captures, namedCaptures, the command run and attempt, and start/end output coordinates. The command’s success or failure branch still activates when the process exits, so a match branch cannot reconnect to either terminal branch.

Matching works across output chunks and UTF-8 boundaries. Keep patterns focused: the matcher retains at most 16 MiB of unmatched output before it fails the step.

Importing coverage after a test command

For a non-Xcode test suite, connect these Builds and command steps in order:

1. Terminal run executes the tests and writes coverage/lcov.info or an Istanbul coverage-final.json inside the worktree.
2. Import coverage report selects the worktree, the worktree-relative Coverage file, and AUTO, LCOV, or ISTANBUL format. The step waits for the agent and writes build.id plus build.coverageSummary.
3. Read code coverage is optional. Add it when later steps need build.coverageFiles and build.changedCoverageFiles, not just the totals.

The import creates a host-only build record, so the result appears on the Build coverage report page and in the coverage picker on Changes. The step fails when the file is missing, unreadable, outside the worktree, too large, or contains no files.

Steps that change external state are marked Mutates and carry an explicit warning: configure an idempotency strategy, and do not blindly retry a result you are unsure about. A retried Jira transition or PR merge is a real second attempt at a real side effect.

Workflow settings

Workflow settings is grouped into three sections, and each field explains itself underneath.

Section	Setting	What it controls
Details	Name and Description	How the workflow is identified across the app
Running	Overlap policy	Queue every event, Run concurrently, or Keep latest pending event
Running	Maximum concurrent runs	The ceiling on simultaneous executions. Shown only for Run concurrently
Running	Overlap scope	Whether the policy is counted Per worktree or across Every worktree
Running	Worktree concurrency	Choose exclusive, non-exclusive, or excluded worktree admission
Running	Block Git operations during command and terminal steps	Prevent concurrent Git and worktree operations while command-like steps run. Always enabled for exclusive workflows
Running	Notify when this workflow completes successfully	Turn off to suppress success notifications for this workflow only
Canvas	Viewer layout	Regular uses your authored positions in read-only views; Basic auto-arranges them for the available width, leaving your positions untouched
Canvas	Step connectors	Handles drawn On the sides or On top and bottom

Overlap scope

The overlap policy decides what happens when a trigger fires while a run is in flight. Overlap scope decides which runs it is measured against.

Scope	Effect
Per worktree	Each worktree gets its own queue, so a run on one worktree never waits for a run on another. Runs that belong to no worktree share a queue of their own
Every worktree	Every run of the workflow is counted together, so its runs wait for each other whichever worktree they belong to

The default is Per worktree, which is what you want for a workflow that is triggered per branch — ten worktrees can each run it at once without lining up behind each other. Choose Every worktree when the workflow touches something shared, such as a release or a deployment, and only one pass should be under way at a time.

Scope applies to Keep latest pending event as well: a trigger only replaces a pending run that is inside the same scope.

A workflow exported before this setting existed imports with the scope its old behavior implied — Per worktree if it reserved the worktree, Every worktree if it did not.

Worktree concurrency and Git blocking

Worktree concurrency applies when a top-level run resolves a worktree. It is separate from overlap, which only compares this workflow’s own runs.

Mode	Behavior
Exclusive	Waits for older participating workflows, Plans, and Sessions, then runs alone. New participating work waits until it finishes
Non-exclusive	Shares the worktree with other non-exclusive work, but waits behind exclusive work
Excluded	Skips the worktree admission lane. Git and worktree steps still serialize when they execute

Non-exclusive is the default. An older exported workflow that reserved its worktree imports as Exclusive; other older workflows import as Non-exclusive.

Enable Block Git operations during command and terminal steps when those steps can modify repository or worktree state. Dedicated Git and worktree steps always serialize. Exclusive workflows enable Git blocking automatically. Plans and Sessions started by an exclusive workflow can still run inside its admission reservation.

Worktree admission for AI run steps

Create plan and wait, Run AI session and wait, Run completed plan, and Follow up run expose a Worktree concurrency limit.

• Plans and Sessions use separate FIFO lanes on each worktree.
• Plans default to unlimited concurrency. Sessions default to one active run.
• Enter 1 through 32 for a finite same-kind limit, or 0 for unlimited concurrency.
• A queued run at the front of a lane is not bypassed by a newer run with a looser limit.

These limits control AI runs on one worktree. They are independent of Maximum concurrent runs, which controls top-level executions of the workflow itself.

Turning off completion notifications suppresses successful-run notifications only. Failure and attention notifications still fire. MCP clients can use completionNotificationsEnabled, overlapScope, worktreeConcurrency, and blocksGitOperations on create_workflow or update_workflow_settings.

Validate, save, publish

1. Validate

   Runs the full checker and lists Validation diagnostics against the offending nodes and edges.

2. Save draft

   Persists your work in progress. The draft has no effect on running behavior.

3. Publish

   Creates a new immutable version and makes it the one that runs. Save before publishing — the editor will tell you if you have not.

Common diagnostics

Diagnostic	What it means
Trigger required	The graph has no trigger
Disconnected trigger / Trigger has an input	The trigger must start the graph and take no incoming edge
Step required	The trigger leads nowhere
Cycle in the graph	The graph must be acyclic
Unreachable step	A step no path reaches
Join step required	Parallel branches must reconverge through an explicit join
Parallel write conflict	Two branches write the same session path
Unsatisfied requirement	A step’s required session path is not provided upstream
Invalid session binding / Unresolved reference	A binding points at a path that does not exist
Secret in plain text	A credential was typed as a literal instead of referenced
Duplicate step id / Duplicate connection id	Identifier collision
Connection endpoint missing	An edge points at a node that is gone
Subworkflow version required	A subworkflow step must pin a version
Resource kind required	A resource trigger must name the resource kind it accepts
Command allowlist required / Command pattern must be anchored	An issue-command trigger needs a safe, anchored allowlist
Command match pattern required / invalid	A command uses the match connector without a pattern, or its RE2 expression is invalid
Command matching requires wait	Output matching is configured on a fire-and-forget command
Command match branch reconverges	A match branch reconnects to the command’s success or failure branch
Trigger choices required / Unknown trigger choice	A choice trigger needs choices, and every edge must leave a defined one
