dSYMs

Upload debug symbols from the dashboard, builds, or GitHub Actions so crash reports can be symbolicated.

The dSYMs tab at /crashes/dsyms lists the debug symbols crash reports are symbolicated with. A dSYM is the .dSYM bundle Xcode writes next to a build; its DWARF file maps every address in the app binary back to a function, file, and line. Each dSYM is identified by the UUID of the binary it belongs to, which is also the UUID a crash report cites.

dSYMs arrive three ways: uploaded in the dashboard, collected from builds this server runs, and posted by CI through the upload API or the Upload dSYMs action. Each upload can carry a Project, Build ID, and Link. The iOS app lists dSYMs and their details, and shows which crashes each one symbolicated.

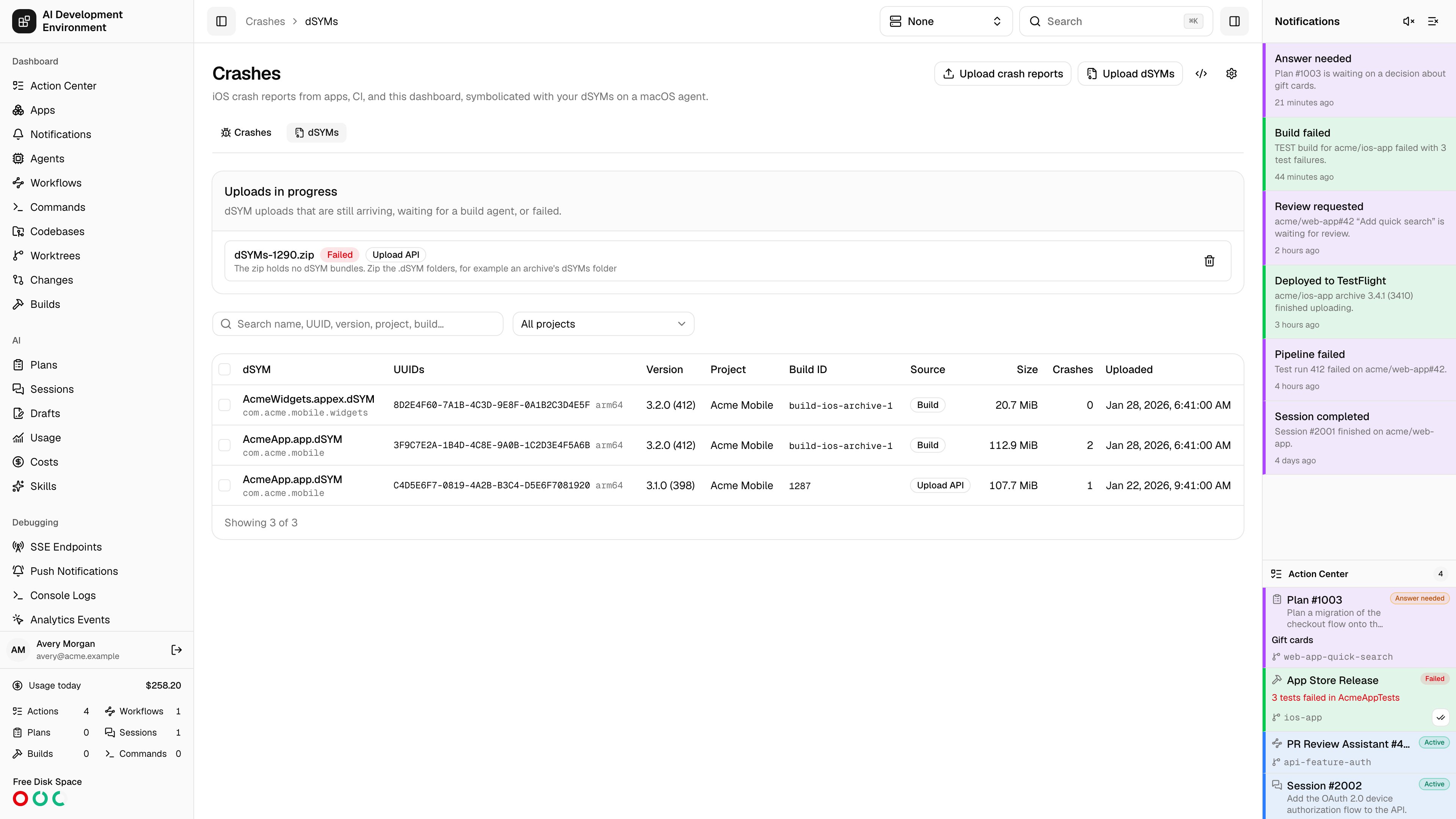

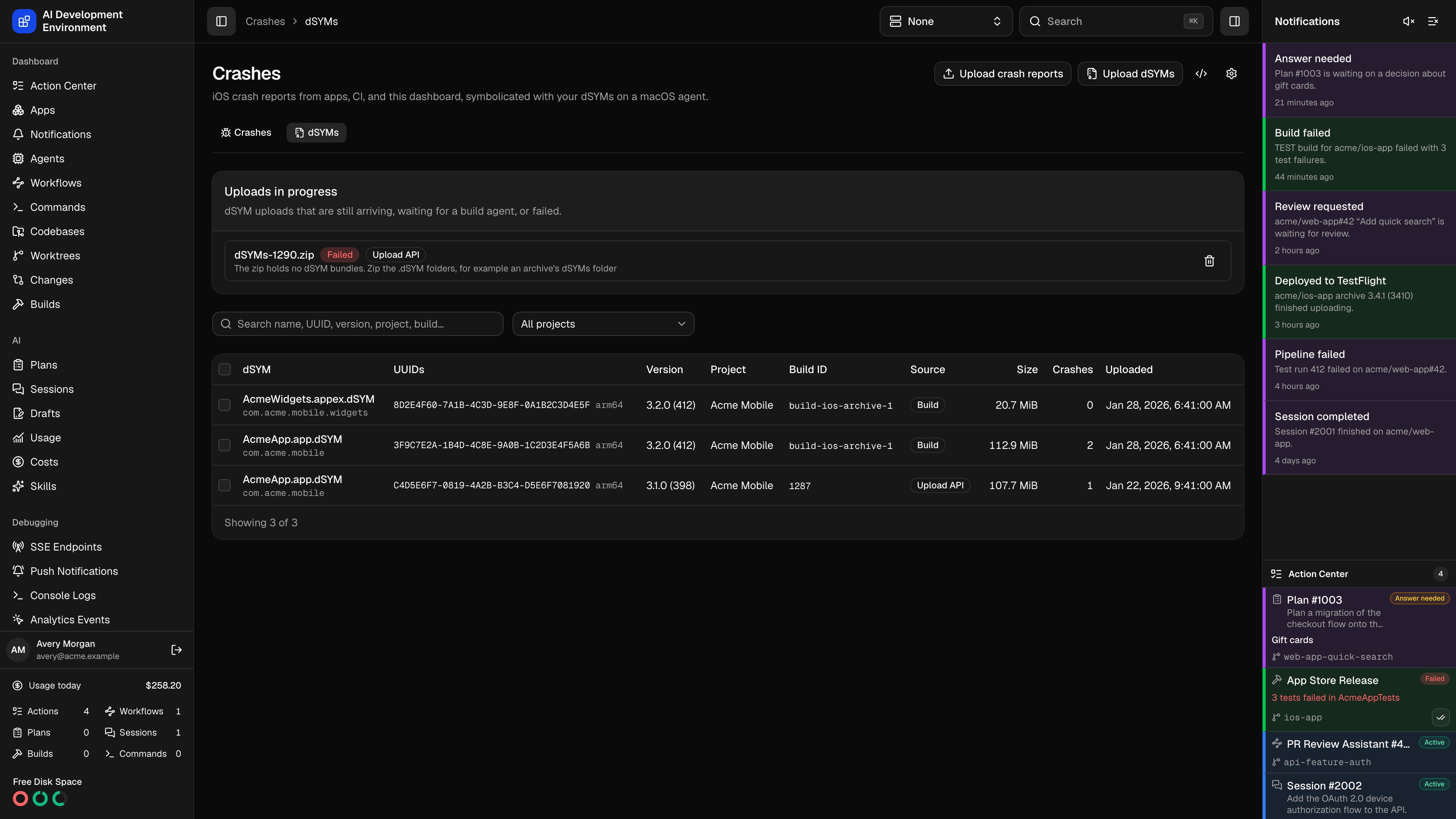

The dSYMs table

Each row is one .dSYM bundle: its name and bundle ID, the UUID and architecture of every slice, the version and build number from its Info.plist, the project, build ID, and source of its upload, its size, and how many crashes it symbolicated. A build ID that matches a build on this server links to it.

Search matches names, bundle IDs, versions, UUIDs with or without dashes, projects, and build IDs. The Project filter lists the projects dSYMs were uploaded with. Open /crashes/dsyms?buildId=<build> — or View dSYMs on a build — to list only one build’s dSYMs.

Uploads in progress above the table lists uploads that are still arriving, build dSYMs waiting to be copied from their agent, and uploads that failed, with the reason. A failed build import has Retry.

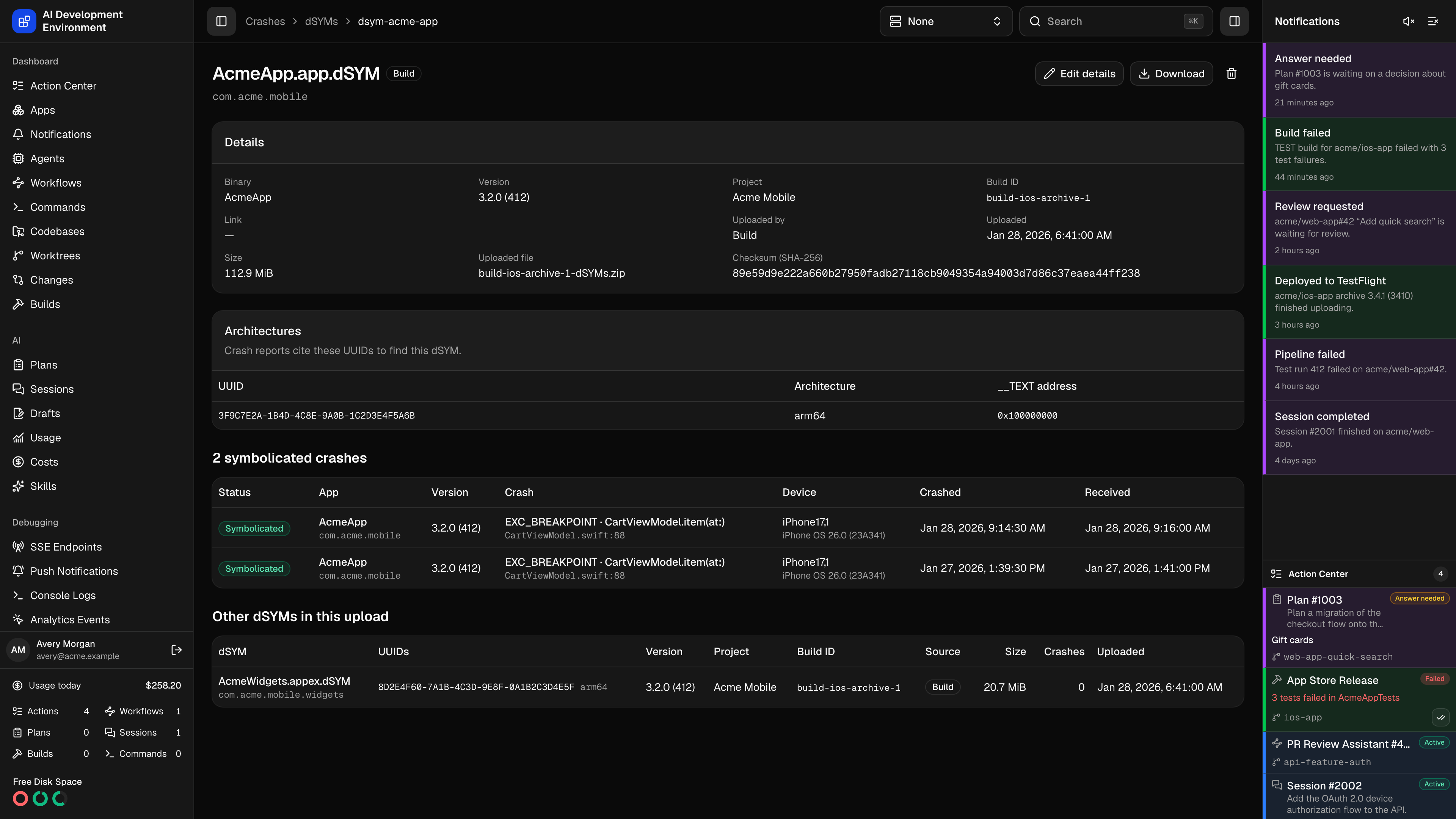

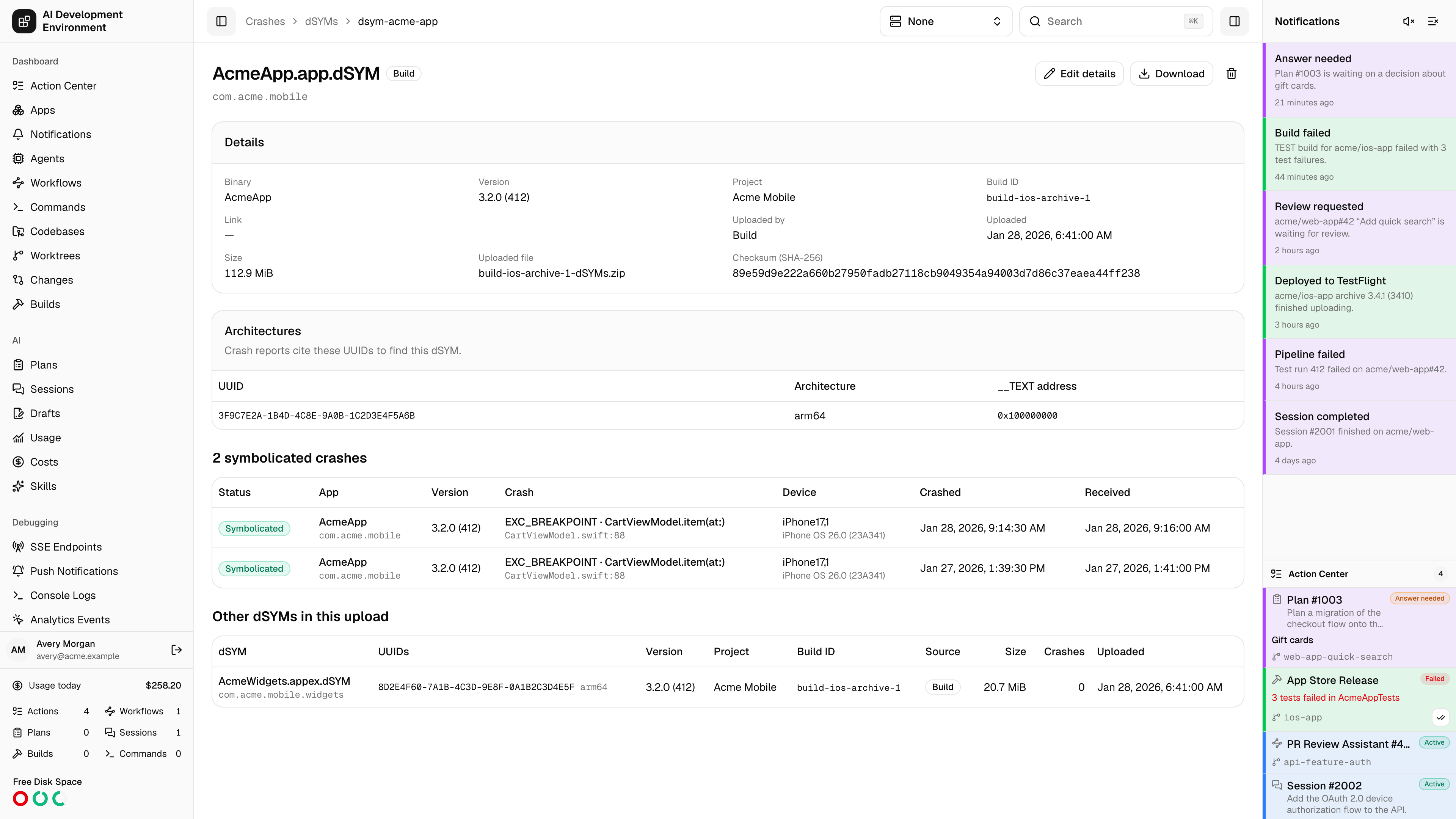

dSYM details

The dSYM details page at /crashes/dsyms/{id} shows the bundle’s binary, version, project, build ID, link, uploader, size, and the SHA-256 of its DWARF file; the UUID, architecture, and __TEXT address of each slice; the crashes it symbolicated; and the other dSYMs from the same upload.

Action	What it does
Edit details	Changes the project, build ID, and link. They belong to the upload, so the change applies to every dSYM in it. A build’s own dSYMs keep their build
Download	Downloads the bundle as a zip that Xcode and atos can open
Delete	Deletes the dSYM. Crashes keep the names it already added

Upload dSYMs in the dashboard

Click Upload dSYMs, optionally fill in Project, Build ID, and Link, then drop any of:

• one or more .dSYM bundles from Finder
• an .xcarchive — only its dSYMs folder is uploaded
• a .zip of dSYMs, such as fastlane’s MyApp.app.dSYM.zip

Folders are zipped in the browser. Uploads use the resumable protocol in 16 MiB chunks, so large dSYMs get through proxies with request size limits, and the dialog shows progress. When the upload finishes, the dialog lists each dSYM with its UUIDs.

Collect dSYMs from builds

Builds keep their dSYMs according to Collect dSYMs, under Advanced settings in Start build and in a build configuration.

Setting	Behavior
Automatic (archives)	Default. Archives keep their dSYMs; other actions do not
Always	Every build keeps its dSYMs
Never	No dSYMs are kept

When dSYMs are collected, the build passes DEBUG_INFORMATION_FORMAT=dwarf-with-dsym to xcodebuild unless you set DEBUG_INFORMATION_FORMAT yourself in Build setting overrides. An archive keeps everything in archive.xcarchive/dSYMs. Other builds keep only the dSYMs whose UUIDs match a binary the build just produced, so older dSYMs left in DerivedData are not picked up.

The agent zips them as a dSYMs artifact on the build. After the build succeeds, the control plane copies that zip from the build agent and indexes it as a Build upload linked to the build, with the repository or app as its project. If the agent is offline, the import waits and retries.

Upload from CI

Create an API key on the API Keys page and store it as a CI secret. dSYM uploads need an X-API-Key or a signed-in session. GitHub Actions workflows can use the Upload dSYMs action; other CI systems call the endpoints below.

One request

POST /api/dsyms takes a zip of one or more .dSYM bundles as the file part of a multipart/form-data body. projectName, buildId, and url are optional form fields.

(cd MyApp.xcarchive/dSYMs && zip -qry ../../dSYMs.zip .)
curl --fail-with-body --header "X-API-Key: $AIDE_API_KEY" \
  --form file=@dSYMs.zip \
  --form projectName=MyApp \
  --form buildId=1234 \
  --form url=https://ci.example.com/runs/1234 \
  https://aide.example.com/api/dsyms

A raw application/zip body with the same fields as query parameters also works. One request is limited to DSYM_UPLOAD_MAX_BYTES, 2 GiB by default.

The response lists every dSYM and its UUIDs, which match xcrun dwarfdump --uuid:

{
  "duplicate": false,
  "upload": { "id": "6e6a…", "status": "READY", "buildId": "1234", "url": "https://ci.example.com/runs/1234", "projectName": "MyApp" },
  "dsyms": [
    {
      "id": "9da5…",
      "bundleName": "MyApp.app.dSYM",
      "version": "3.2.0",
      "build": "412",
      "url": "/crashes/dsyms/9da5…",
      "slices": [{ "uuid": "776386D0-4386-3F24-9B21-5F7C02EB2873", "arch": "arm64" }]
    }
  ]
}

Status	Meaning
201	Indexed. Crashes waiting on these UUIDs are symbolicated again
200	The same zip was already uploaded; its upload is returned, with any new project, build ID, or link applied
400	The zip is unreadable, holds no .dSYM bundles, contains symbolic links or paths outside the zip, or none of its DWARF files are Mach-O
401	No valid API key or session
413	The zip is larger than one request allows; use the resumable upload
415	The body is neither multipart nor a zip

Large zips

Proxies such as Cloudflare cap a request at 100 MB. Larger zips use the resumable protocol:

1. POST /api/dsyms/uploads with JSON { "filename", "sizeBytes", "sha256", "projectName", "buildId", "url" }. sha256 is optional and checked at the end. The response has the upload’s id and chunkBytes (16 MiB).
2. PATCH /api/dsyms/uploads/{id} with each chunk of at most 16 MiB as the body and its byte position in Upload-Offset. A 409 means the offset is not where the server is; HEAD on the same path returns the right Upload-Offset to resume from.
3. POST /api/dsyms/uploads/{id}/complete verifies the checksum, indexes the zip, and returns the same body as the one-request upload.

Only the credential that started an upload can continue it. Unfinished uploads are discarded after 24 hours. This script runs the whole protocol with curl and jq:

upload-dsyms.sh

#!/usr/bin/env bash
# Usage: AIDE_URL=… AIDE_API_KEY=… ./upload-dsyms.sh dSYMs.zip
# Optional: PROJECT_NAME, BUILD_ID, BUILD_URL
set -euo pipefail
ZIP="$1"
SIZE=$(wc -c < "$ZIP" | tr -d ' ')
SHA=$(shasum -a 256 "$ZIP" | cut -d' ' -f1)
CHUNK=$((16 * 1024 * 1024))
TMP=$(mktemp -d)
trap 'rm -rf "$TMP"' EXIT
BODY=$(jq -n --arg filename "$(basename "$ZIP")" --argjson sizeBytes "$SIZE" \
  --arg sha256 "$SHA" --arg projectName "${PROJECT_NAME:-}" \
  --arg buildId "${BUILD_ID:-}" --arg url "${BUILD_URL:-}" '$ARGS.named')
ID=$(curl -sSf -H "X-API-Key: $AIDE_API_KEY" -H 'content-type: application/json' \
  -d "$BODY" "$AIDE_URL/api/dsyms/uploads" | jq -r .id)
OFFSET=0
while [ "$OFFSET" -lt "$SIZE" ]; do
  dd if="$ZIP" of="$TMP/chunk" bs="$CHUNK" skip=$((OFFSET / CHUNK)) count=1 2>/dev/null
  curl -sSf --retry 3 --retry-all-errors -X PATCH \
    -H "X-API-Key: $AIDE_API_KEY" -H "Upload-Offset: $OFFSET" \
    -H 'content-type: application/offset+octet-stream' \
    --data-binary @"$TMP/chunk" "$AIDE_URL/api/dsyms/uploads/$ID"
  OFFSET=$((OFFSET + $(wc -c < "$TMP/chunk")))
done
curl -sSf -X POST -H "X-API-Key: $AIDE_API_KEY" \
  "$AIDE_URL/api/dsyms/uploads/$ID/complete"

The same contract is under the API icon on the Crashes page, filled in with your server’s address.

GitHub Actions

The Upload dSYMs action runs the resumable protocol for you: it finds and zips the dSYMs, retries through proxies such as Cloudflare, and can send Cloudflare Access service-token headers. Add AIDE_API_KEY as a repository secret and AIDE_URL as a variable, then upload after archiving:

xcodebuild archive

- name: Archive
  run: |
    xcodebuild archive -scheme MyApp -configuration Release \
      -destination 'generic/platform=iOS' \
      -archivePath "$RUNNER_TEMP/MyApp.xcarchive"

- name: Upload dSYMs
  uses: bludesign/ai-development-environment-upload-dsyms@v1
  with:
    url: ${{ vars.AIDE_URL }}
    api_key: ${{ secrets.AIDE_API_KEY }}
    dsym_paths: ${{ runner.temp }}/MyApp.xcarchive

The action records the repository as the Project, the run ID as the Build ID, and the workflow run as the Link. Other CI systems can run the script above.

Bitcode is gone since Xcode 14, so the dSYMs in your archive are the ones that match App Store and TestFlight builds. You do not need to download dSYMs from App Store Connect.

What an upload keeps

The control plane reads each zip without Xcode, so a Linux or Docker control plane can index dSYMs. It keeps only each bundle’s DWARF file and Info.plist, stored under CRASH_DATA_DIRECTORY, and discards the zip. Resource forks, __MACOSX folders, and anything outside a .dSYM bundle are skipped. A zip whose entries are symbolic links or point outside the zip is refused.

Uploading the same zip twice keeps one copy. When several uploads contain the same UUID, the newest is used.

dSYMs are kept until you delete them, unless Keep dSYMs is set in the Crashes settings. Downloads under /api/crash-files/dsyms/* need a signed-in session or an API key. The symbolicating agent downloads DWARF files over /api/agent/dsyms/{id}/dwarf only while it has a job that needs them, and caches them in ~/Library/Caches/control-agent/dsym-cache, up to 10 GiB, or in CONTROL_AGENT_DSYM_CACHE.
